5MHz~40MHz LT-CR series oven controlled crystal oscillator
Quick Detail:
· Aluminum housing
· 3.3V~15V Operating Voltage (VDD)
· -55℃~+85℃ operating temperature
· SMD package
· High precision
· Low phase noise
· CMOS or Sine Wave Output Waveform
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:

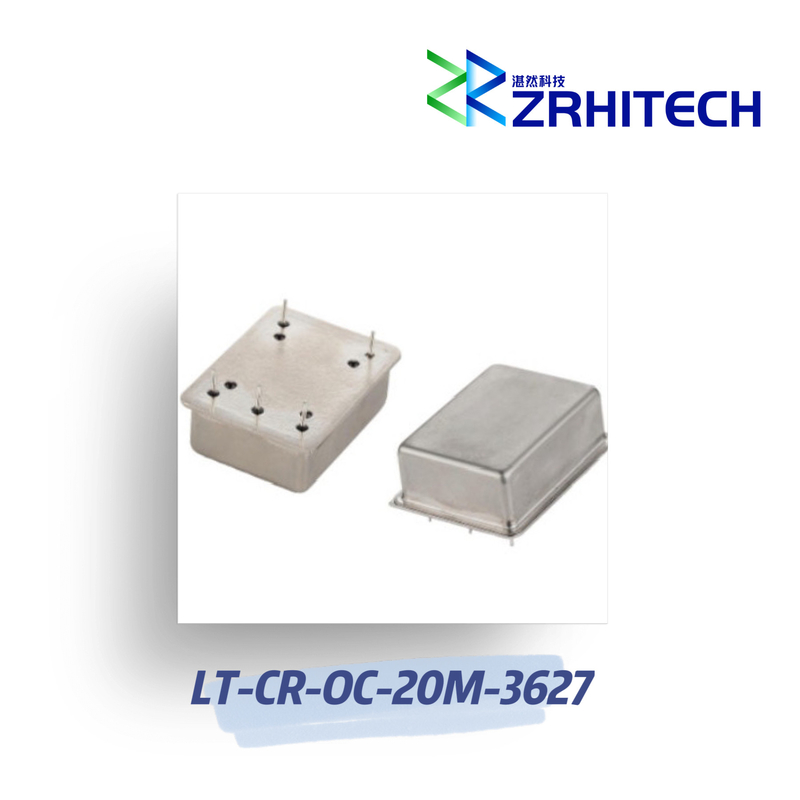

The LT-CR-OC-20M-3627 is the newest addition to ZR’s line of OCXOs. We provide sinewave or CMOS output waveforms with a phase noise of -140 dBc/Hz (at 10 Hz offset) and have a frequency stability of ±3 ppb (vs. temperature). The OCXO is fabricated using an SC-cut crystal that offers high stability and low aging. They are available in surface-mount packages that measure 36 x 27 x 12.7 mm. This OCXOs is ideal for satellite communications, base stations, measuring instruments, etc...
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-CR-OC-20M-3627 | |
| Frequency Range | 20M,5MHz~40MHz | |
| Operating Voltage(VDD) | 3.3~15V | |
| Setup Power Consumption | ≤5W | |
| Operating Temperature | -55℃~85℃ | |
| Frequency Stability vs. Temperature | ≤±3ppb | Relative to the frequency at 25℃ |
| Frequency Tolerance | ≤±0.1ppm | @25℃±1℃ |
| Output Waveform |
C: CMOS , S: Sine ave |
|
| Output Impendance | 50ohms | |
| Output Power | 7~13dBm | |
| Phase Noise (typ.) |
-115dBc/Hz@1Hz； -140dBc/Hz@10Hz； 155dBc/Hz@100Hz -160dBc/Hz@1kHz； -165dBc/Hz@10kHz； |
Typical Frequency:10MHz |
| Dimension | 36×27x12.7mm | |
| Note: for custom specs, please contact us directly. | ||
